Hi, i have the following production scenario, with the C3xx line of OLT's:
Each PON interface is assigned a Vlan, that is tagged in the uplink port
Each ONU is assigned a Vlan inside the PON_VLAN
Therefore, for a 16-pon system, i have 16 "PON_Vlans", with 128 "ONU_VLANs" inside each "PON_VLAN"
For encapsulating the "ONU vlan" inside the "PON vlan", i have used the SmartQinQ function, so that the ONU provisioning script does not have to double-tag each ONU:
!
interface xgei_1/3/2
description UPLINK
switchport mode hybrid
switchport vlan 4001-4016 tag
port-protect disable
uplink-isolate disable
!
!
vlan-smart-qinq ingress-port gpon-olt_1/2/1 cvlan 1 to 256 svlan 4001
vlan-smart-qinq ingress-port gpon-olt_1/2/2 cvlan 1 to 256 svlan 4002
...
...
vlan-smart-qinq ingress-port gpon-olt_1/2/16 cvlan 1 to 256 svlan 4016
!
!
interface gpon-onu_1/2/16:128
name Client0128
description Client0128
tcont 1 profile 50M-UP
gemport 1 tcont 1
gemport 1 traffic-limit downstream 50M-DOWN
end
pon-onu-mng gpon-onu_1/2/16:128
loop-detect ethuni eth_0/1 enable
flow mode 1 tag-filter vlan-filter untag-filter discard
flow 1 pri 0 vlan 128
gemport 1 flow 1
switchport-bind switch_0/1 veip 1
vlan port eth_0/1 mode tag vlan 128
dhcp-ip ethuni eth_0/1 from-internet
!

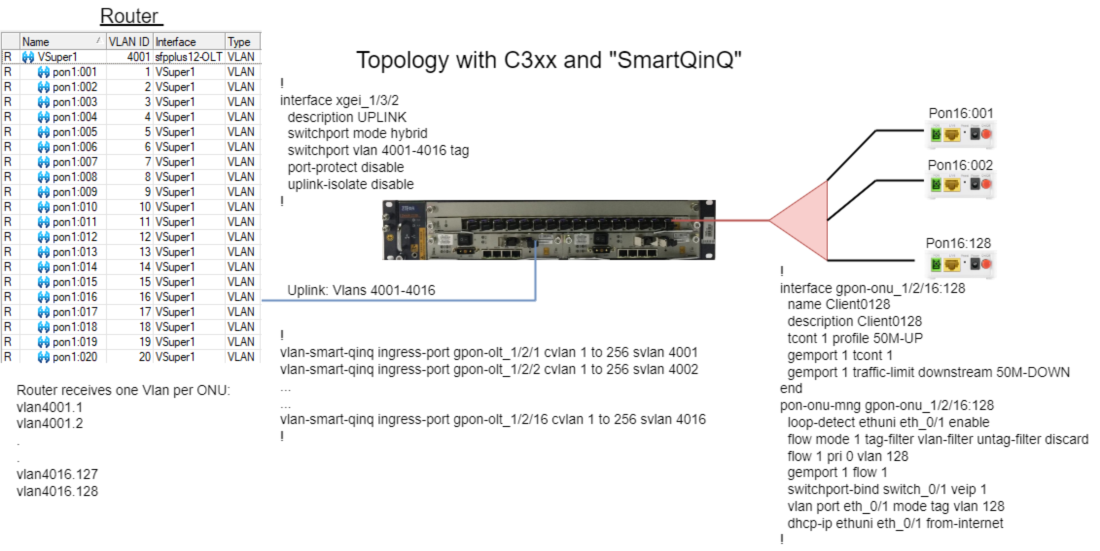

As exemplified in the diagram:

Now i need to do the same in the new C610 OLT, but it does not have the "Vlan-Smart-QinQ" command, (at least not in version 1.2.1)
So i tried double-tagging the Vlan at the ONU port:
interface gpon_onu-1/3/16:4
$
interface gpon_onu-1/3/16:4
name F601v6_Test
description F601_test
tcont 1 profile 20M-UP
gemport 1 name internet tcont 1
$
pon-onu-mng gpon_onu-1/3/16:4
dhcp-ip ethuni eth_0/1 from-internet
loop-detect ethuni eth_0/1 enable
vlan port eth_0/1 mode tag vlan 40
$
interface vport-1/3/16.4:1
service-port 1 user-vlan 40 vlan 4016 svlan 4016
qos traffic-policy 20M-DOWN direction egress
$
And also using vlan-profiles:
gpon
onu profile vlan 4016.30 tag-mode vlan-stacking svlan 4016 cvlan 30
$
(in this case, using an F660 ONU:)
interface gpon_onu-1/3/16:3
$
interface gpon_onu-1/3/16:3
name F660v7_Test
description F660_Test
tcont 1 profile 20M-UP
gemport 1 name internet tcont 1
$
pon-onu-mng gpon_onu-1/3/16:3
veip 1
wan-ip ipv4 mode dhcp vlan-profile 4016.30 host 1
wan-ip ipv4 ping-response enable traceroute-response enable
wan 1 service internet
$
interface vport-1/3/16.3:1
service-port 1 user-vlan 30 vlan 30 svlan 4016
qos traffic-policy 20M-DOWN direction egress
$
Also does not work, Wireshark reports that bare-vlan 30, and not 4016.30 is going to the uplink
So in the C600 line, what is the correct configuration to reproduce the same behavior i had in the C3xx line?
Thanks
Guilherme Poletto
